Transom Davits

The ST-275

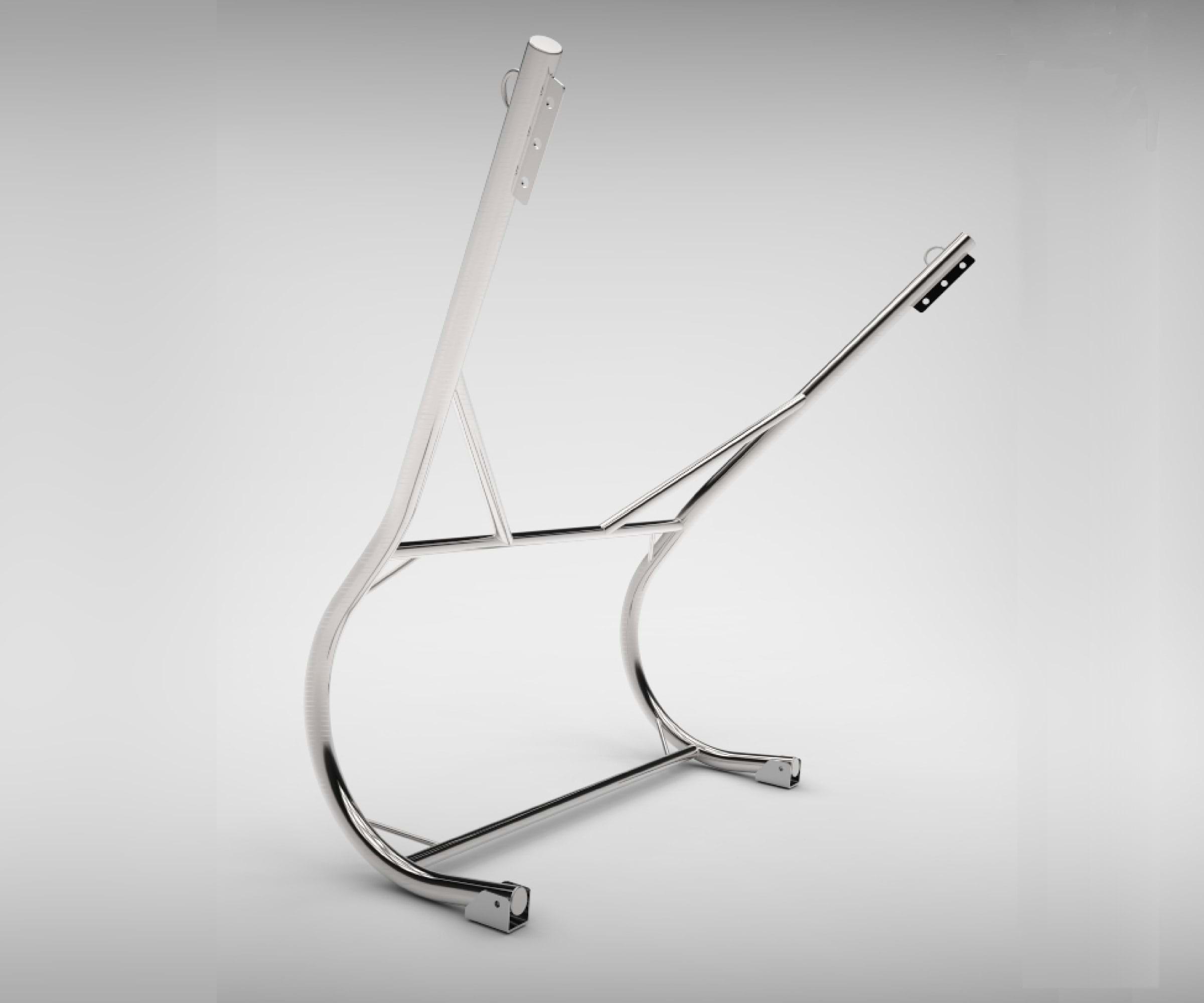

ST-275 Tilt Davit for Inflatable's

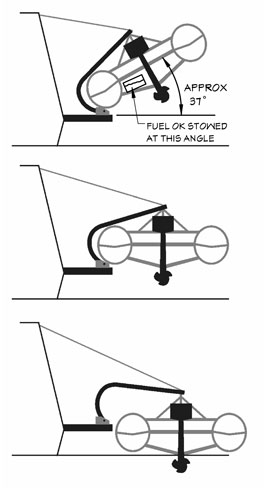

• • The low profile tilt position is approximately 37°. This allows the motor and fuel to remain on the tender when stowed.
  • Low profile stowage position provides exceptional stern visibility with virtually no air cupping or drag.
  • Smooth, manual one-person launch or retrieval utilizing the included block-and-tackle and cleat.
  • Hinged base, mounted on swim step allows davit to disconnect at top and swing into the water, clearing the swim step when tender is launched.
  • Lightweight, super buffed, marine-grade stainless steel tubing prevents corrosion for long-lasting finish.

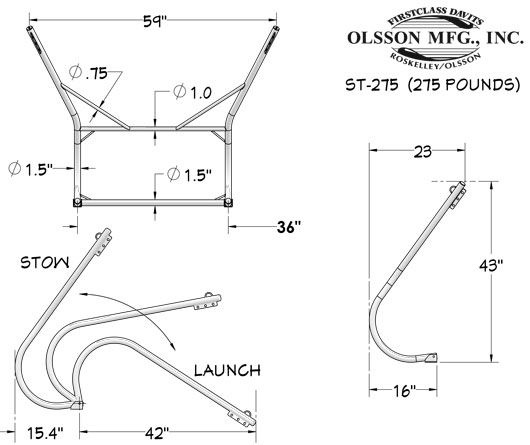

SPECIFICATIONS ST-275

• Rigid Fiberglass-Bottom Inflatable's.
• Maximum Capacity: 275 lbs. {Including Motor, Fuel Tank, Etc.)
• Maximum Dinghy Length: 12'.
• Hinge Mounting Width: 36'.
• Weight: 25 lbs.

INCLUDED: Cleat, Block & Tackle.

NOT INCLUDED: Bolts/Fastener lines from davit to tender.

Please note: Dimensions shown are for reference only. Olsson MFG can customize to your specific application. (Specifications subject to change without notice)
